Product In Context & Exploded View

Prototype Making



Here are more images of the mechines that i have used to make the chair ...

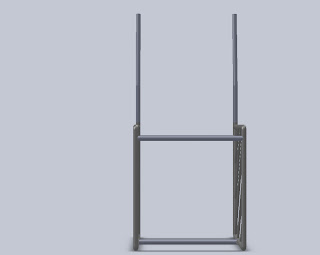

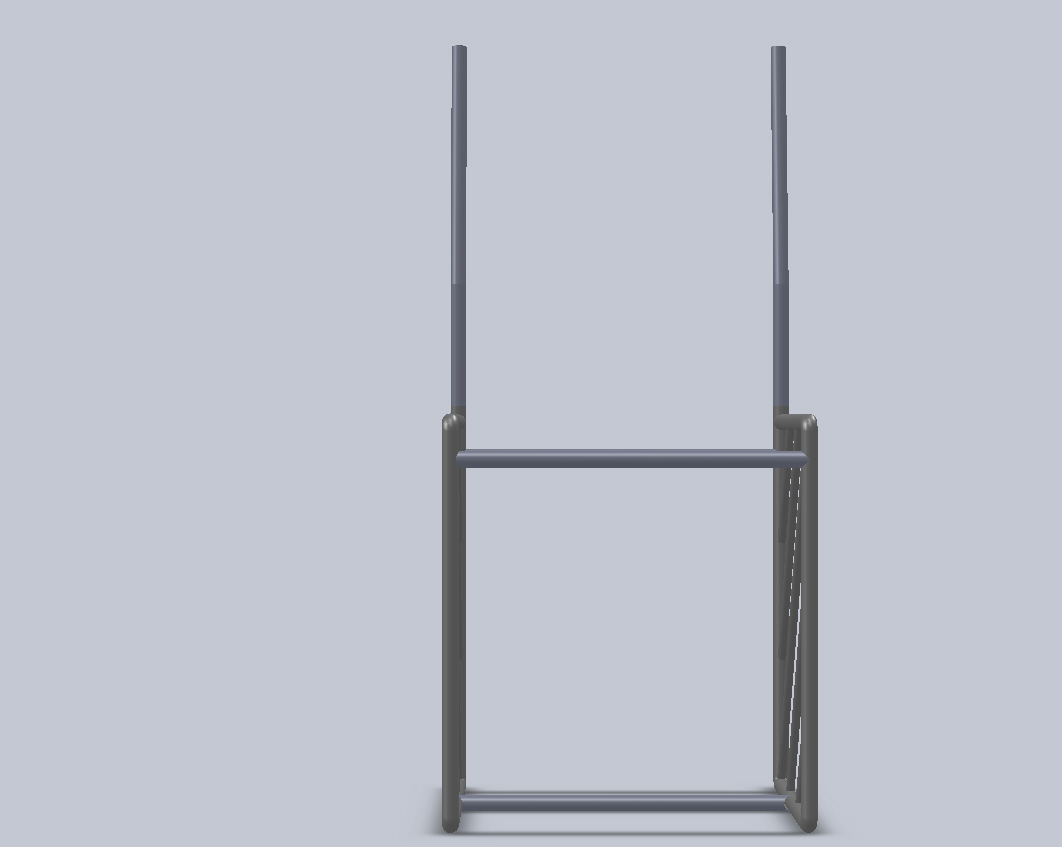

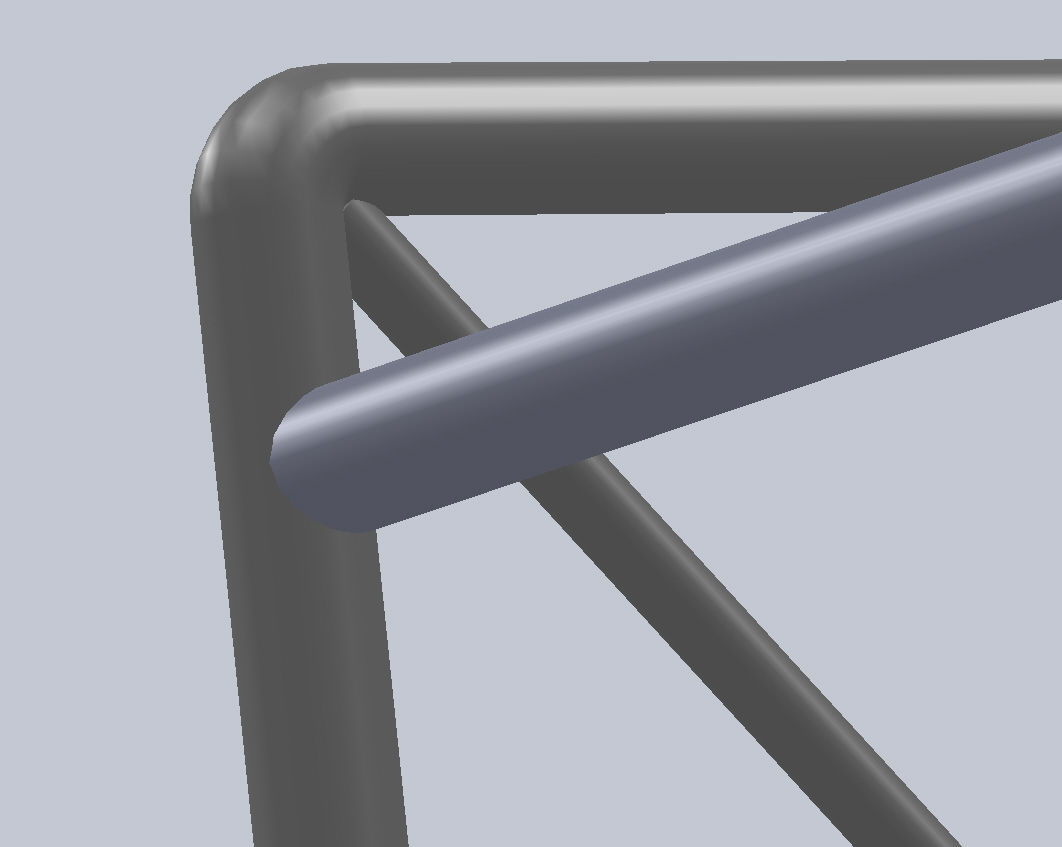

Final Design



Chair Features:

Very strong chair (it could hold up to 330 lb= 149.7 KG)

Made from steel rectangular tube and rounded steel tube supporters
Ergonomically positioned seat

Include back rest
appropriate for indoor and outdoor applications

Materials Used:
32mm x 12mm Tube steel
12mm rounded steel tube

Vinyl, Foam, Timber (seat & back rest)

Joining Methods:
Welds
Threaded Drilling & bolt

Finish:

Powder coating finish (light grey)

Re-design

In-Class Exercise3

Task: Free Hand 1:1 scale Drawings



Learning Objectives: This task was very helpful because it helps to get an idea of how the real chair will be, and it also shows how the dimensions will be in real life. I’ve done so many 1:1 scale dimensions for my all chosen concepts, and they were very helpful.

Further Development
