Final Prototype Images

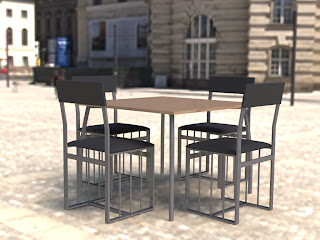

Product In Context & Exploded View

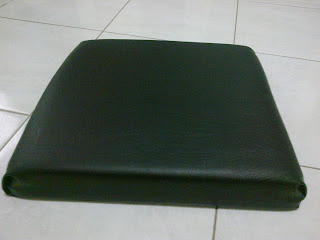

Prototype Making



Here are more images of the mechines that i have used to make the chair ...

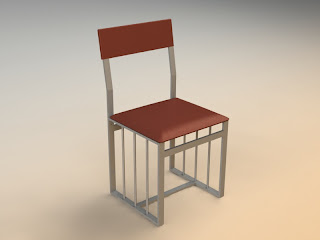

Final Design



Chair Features:

Very strong chair (it could hold up to 330 lb= 149.7 KG)

Made from steel rectangular tube and rounded steel tube supporters
Ergonomically positioned seat

Include back rest
appropriate for indoor and outdoor applications

Materials Used:
32mm x 12mm Tube steel
12mm rounded steel tube

Vinyl, Foam, Timber (seat & back rest)

Joining Methods:
Welds
Threaded Drilling & bolt

Finish:

Powder coating finish (light grey)

Re-design
